High-Strength & Eco-Friendly Geocell For Soil Stabilization And Erosion Control

Name: HighStrength amp EcoFriendly Geocell For Soil Stabilization And Erosion Control
Brand: GeoMax
Price: 1 USD

Buy cheap High-Strength & Eco-Friendly Geocell For Soil Stabilization And Erosion Control product

Brand Name : GeoMax

Model Number : GM250-660

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 2500 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 3000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

HDPE Geocell Material : 100% HDPE Plastic

Geocell Standard : ASTM;GB

Geocell Height : 250mm

GeoMax Model : 250-660

Color : Black;Green;Yellow

Geocell Welding Space : 660mm

Thickness : 1.5mm

Geocell Surface : Smooth;Textured;Perforated

HDPE GeocellDensity : 0.935-0.965 g/cm3

Contact Now

Geocell for Road Base Reinforcement Cost-Effective Cellular Confinement Solutions Geocell For Slope Protection Retaining Wall 250mm Height

High-Strength & Eco-Friendly Geocell For Soil Stabilization And Erosion Control

HDPE Geocell Product Introduction

With more than two decades of expertise in crafting cellular confinement systems, GeoMax® has pioneered a multifunctional, industry-leading solution supported by over 100 patented innovations.

Our GeoMax® system is manufactured in strict compliance with ISO and CE quality standards, ensuring clients receive products of the highest quality. The system's reliability hinges on its exceptional seam strength and uniform weld integrity. Utilizing cutting-edge technology and meticulous production methods, we consistently deliver premium-grade solutions to meet customer needs.

• Certified to ISO 9001:2016 International Standards
• CE marked, demonstrating conformity with EU harmonized standards

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

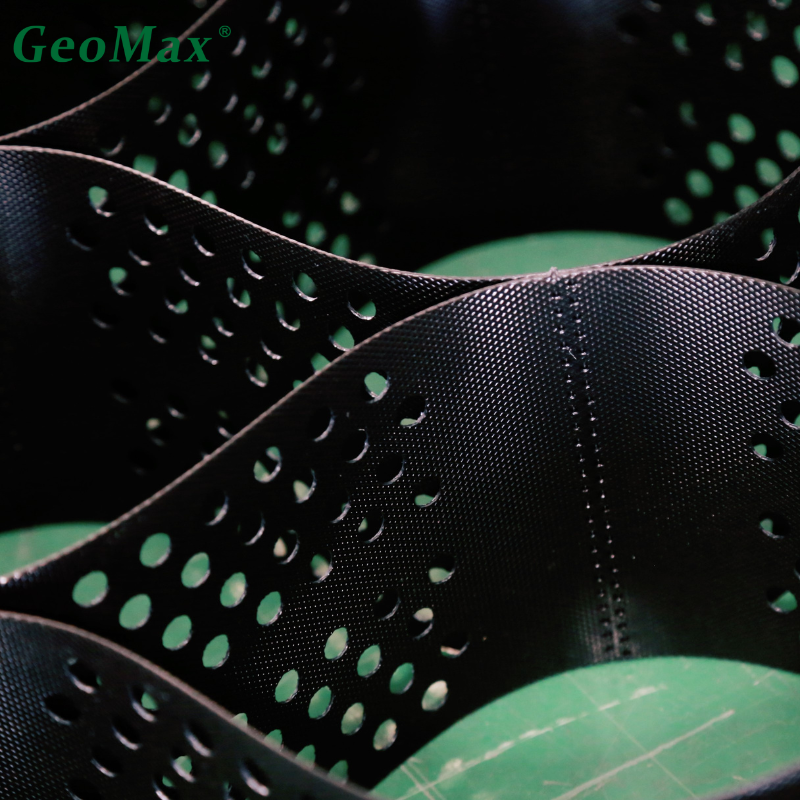

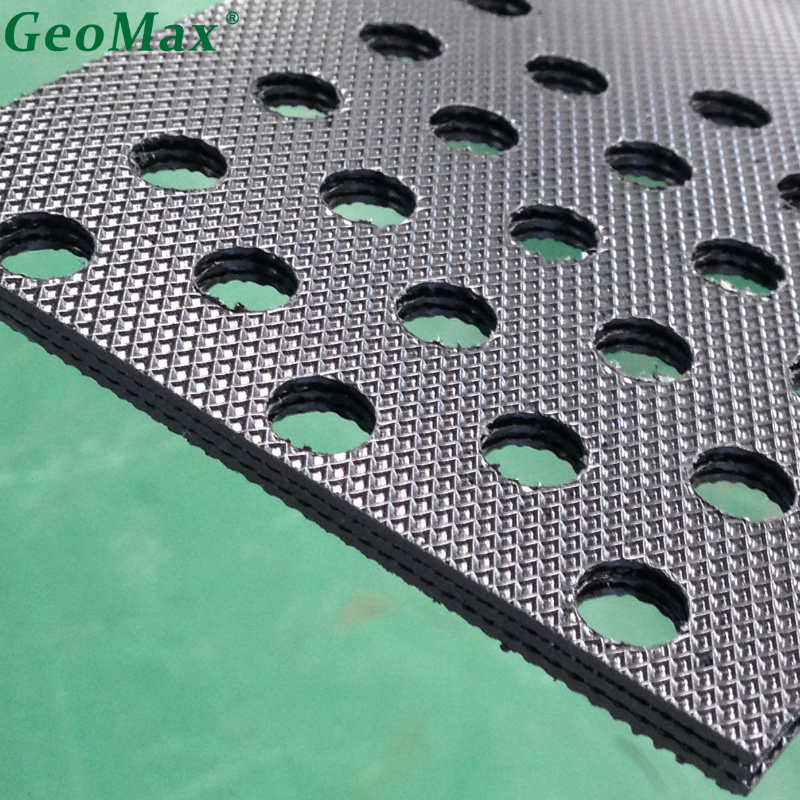

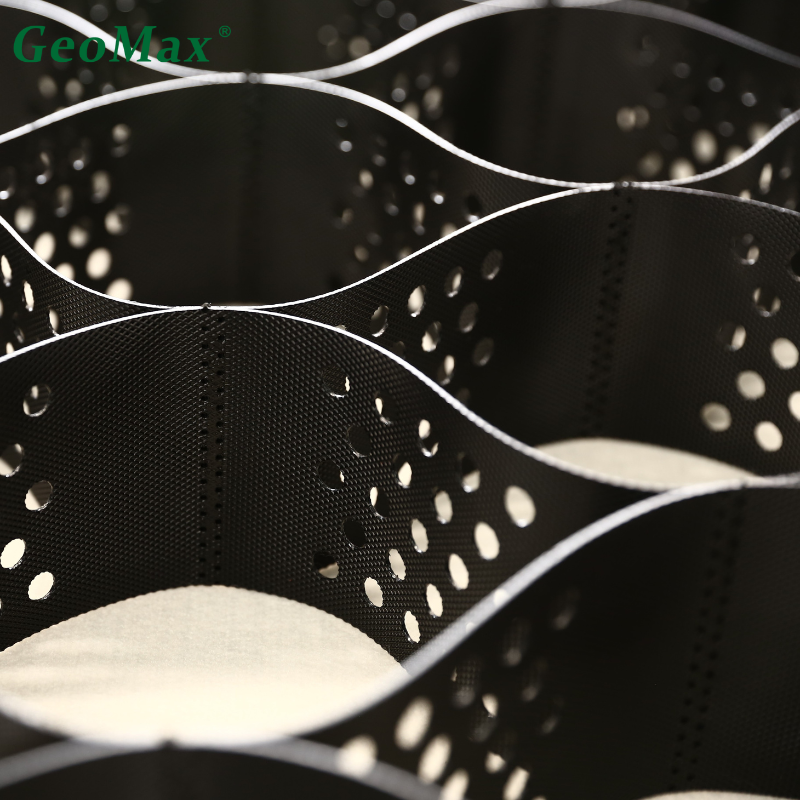

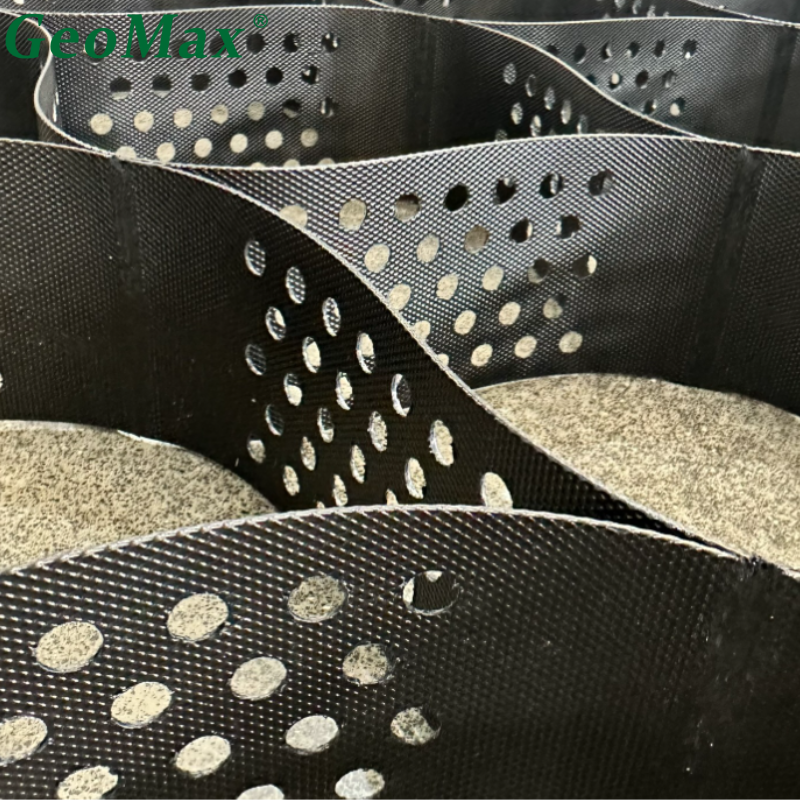

DETAILED PHOTOS

High-Strength & Eco-Friendly Geocell For Soil Stabilization And Erosion Control

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES

PHOTO OF THE EXHIBITION

High-Strength & Eco-Friendly Geocell For Soil Stabilization And Erosion Control

FAQ:

Q: What is Geocell made out of ?
A: Our honeycomb geocell structures are made out of a thick high-density polyethylene (HDPE) that's as strong as concrete. Engineers ultrasonically welded Geocell at certain intervals for maximum strength. Also, the product has perforation (holes) that provide natural drainage in your commercial project.

Q: What if my project dimensions are different than the Geocell panels ?
A: We can custom-design Geocell foundation grids to meet whatever project demands you have. Drainage pipes, trees, and other obstacles are not an issue when laying a solid geocell base. You can fit flexible Geocell panels around these objects that you can't do with concrete and steel.

Q: What GeoMax Geocell product testing has been done? Can I see the product specs?
A: Our support team would be glad to speak with you about product testing and specs. We consult your project through a free commercial evaluation to learn your specific needs. Schedule one now and we can get back to you in a few hours.

Q: Where is it manufactured ?
A: GeoMax geocell is manufactured in Anhui China.

Q: Can you do customize size ?
A: Yes, we can do customized strictly as your requirement.

Q: What Standard can you do?
A: We can do ASTM Standard and GB Standard, we can do customize standard as well.
